INSULATED PANEL SYSTEMS

Roof Panel Systems

Metallon brings a new dimension to roof construction. Our thermally-efficient panel systems provide our customers with improved health and safety onsite, speed of construction and accuracy. Our eco-friendly insulated panel systems create not only instant room space, but more of it. In addition, Metallon comes with a dedicated support team who are on hand to assist with all of your requirements, bringing a new dimension of service to the roof sector.
Metallon offer the complete roof package for the design, supply and installation of roof panel systems.

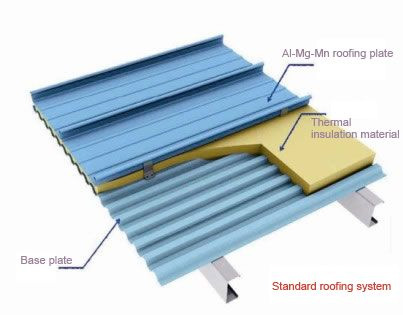

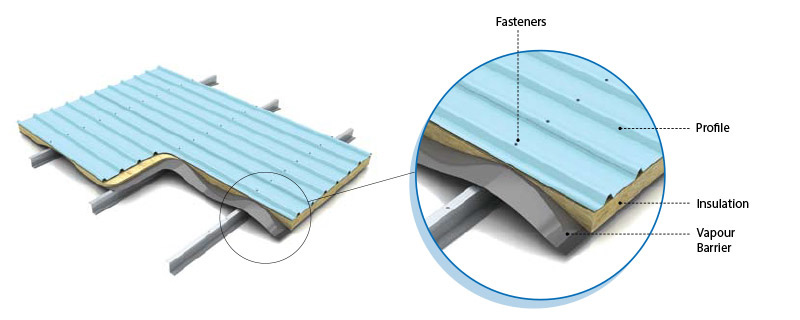

Single-Skin Roof Panels

Single skin metal roof uses only 1 metal deck sheet and is designed to provide an economical solution, normally used in applications where performance demands are moderate. Insulation for single skin metal roof is installed below the metal cladding sheet held by aluminum foil and steel wire mesh rolled over purlins.

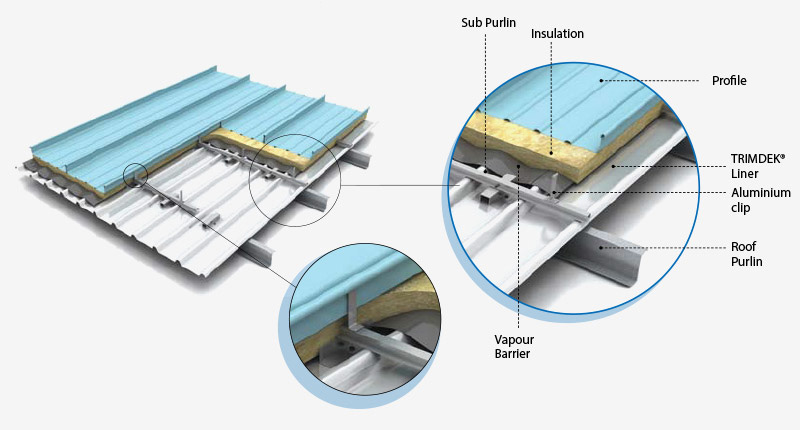

Double-Skin Roof Panels

Double skin metal roof is a high-performance roofing system comprising of 2 metal roof sheets aligning parallel, One on top and the other at the bottom. The metal can be Steel, Aluminum, Colour Coated Galvnise, Galvalume, Colour Coated Galvalume.
The two metal sheets are fixed together with a Z Spacers creating a gap in the roof space for installation of insulation and barrier material.
Double skin insulation is ideal solution to improve the indoor temperature,reducing exterior noise and fire protection of the entire system.

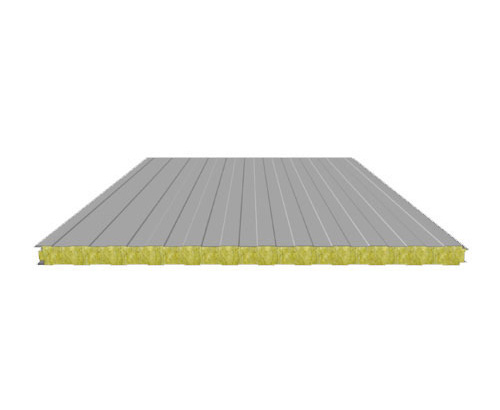

Double-Skin Rockwool Roof Panels

It’s a well-known fact that heat rises. And given roofs form the highest part of the building envelope, they inevitably become a potential major source of heat loss. Regardless of building type, whether residential or commercial, effective insulation of the roof is crucial to reduce energy consumption. When designing new developments, the insulation treatment of a roof should be considered holistically alongside the wall specifications. Double-Skin Rockwool Roof Panels insulation will provide a highly effective acoustic, thermal and fire protection solution.
Rockwool insulation is extremely resilient to fire. It works to contain fire and prevent its spread. At the same time, it does not contribute to the emission of significant quantities of toxic smoke.

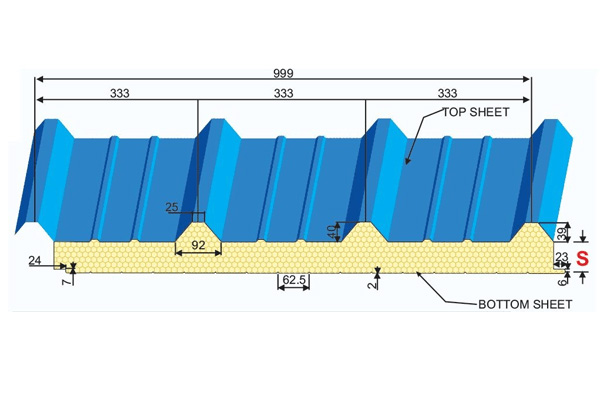

Double-Skin PUF Roof Panels

Double Skin PUF Insulated Roof Panel systems are the answer to the Architectural problem of providing high insulation value to the roofing and wall in air conditioning to industrial/commercial building...
Thermal efficiency, lifetime durability and fire resistance are characteristic features of sandwich PUF panels. A wide range of applications across multiple industrial and commercial platforms has empowered organizations to lead their respective sectors.

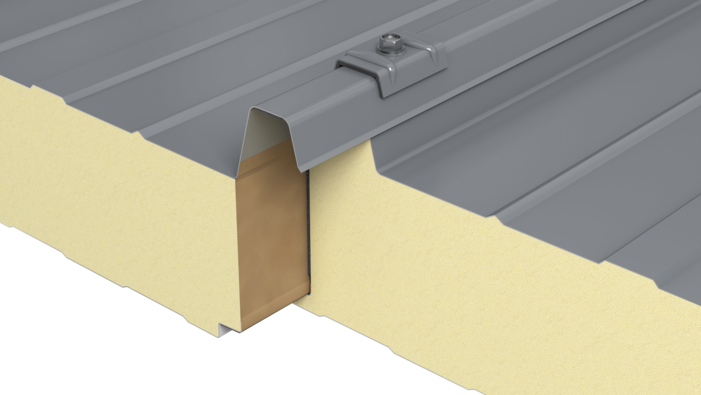

Double-Skin PIR Roof Panels

The polyurethane /polyisocyanurate insulated sandwich panels which are used to form the walls and ceiling ensure a high degree of structural stability. Each panel is formed with an integral tongue and groove having metallic allen key operated cam locking arrangement to have secured and leak proof joints. The Panel can be provided with suitable inserts as required. The facing skin options are Stainless steel, Coated Steel, FRP, Aluminium, Plywoods, Flexible board etc.
